FSY、WSY型甲酸液下泵,鹽酸液下泵,醋酸液下泵,稀硫酸液下泵安裝尺寸
時間：2013/4/12 來源：浙江揚子江泵業有限公司
玻璃鋼液下泵型號意義:
例如：25WSY-22
25-排出口徑
WSY-玻璃鋼
液下泵22-揚程
二、FSY、WSY型玻璃鋼液下泵參數：
|
型 號 |
流量Q |
揚程H (m) |
轉速n (r/min) |
功率N (Kw) |
葉輪直徑D (mm) |
吸上高度 (Hs) | ||
|
(m3/h) |
(L/S) | |||||||
|
25WSY-22 |
a
型 |
2.88 4.05 6.48 |
0.80 1.12 1.80 |
22 18 15 |
2900 |
2.2 |
120 |
800
至 3000 |
|
25WSY-30 |
2.88 6.48 9.00 |
0.80 1.80 2.52 |
30 20 15 |
2900 |
3 |
120 | ||
|
40WSY-258 |
5.76 8.10 13.32 |
1.60 2.24 3.70 |
25 20 15 |
2900 |
4 |
142 | ||
|
40FSY-22 |
8.10 15.84 20.00 |
2.24 4.4 5.50 |
22 18 15 |
2900 |
3 |
140 | ||
|
40FSY-18 |
6.48 15.00 21.60 |
1.80 4.17 6.00 |
18 15 12 |
2900 |
2.2 |
132 | ||
|
40WSY-50 |
b
型 |
6.48 8.64 14.40 |
1.80 2.40 4.00 |
50 45 35 |
2900 |
7.5 |
144 | |
|
40FSY-35 |
10 20 30 |
2.8 5.5 8.3 |
34 30 24 |
2900 |
4 |
162 | ||
|
50FSY*35 |
30 45 55 |
8.3 12.5 15.1 |
35 32 28 |
2900 |
7.5 |
182 | ||
|
50FSY-35A |
25 35 45 |
7.0 9.7 12.5 |
26 25 22 |
2900 |
5.5 |
168 | ||
|
50FSY-20 |
18 30 35 |
5.0 8.3 9.7 |
20 16 12 |
2900 |
4 |
150 | ||
|
80FSY-35 |
56s 92 110 |
15.5 25.5 30.5 |
35 29 25 |
2900 |
15 |
184 | ||
|
80FSY-35A |
45 69 90 |
12.5 19.2 25.0 |
26 22 19 |
2900 |
11 |
163 | ||

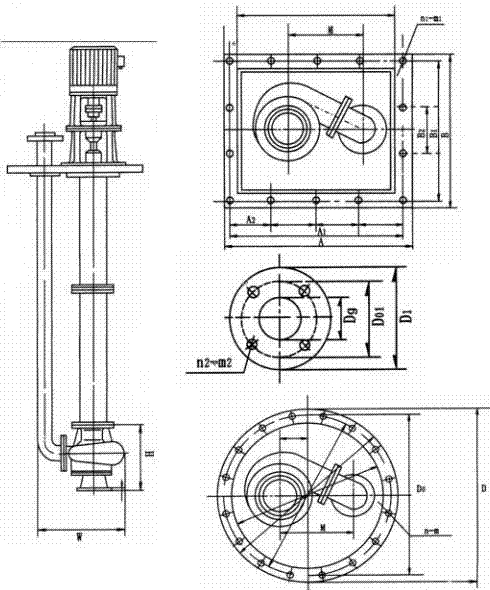

三、FSY、WSY型玻璃鋼液下泵安裝尺寸：
|
型號 |
W |
M |
H |
D |
DO |
n-m |
Dg |
D1 |
DO1 |
n2-m2 |
|
SY40×32-20 |
340 |
205 |
200 |
450 |
400 |
8-F16 |
40 |
145 |
110 |
4-F18 |
|
SY50×40-20 |
340 |
205 |
210 |
450 |
400 |
8-F16 |
40 |
145 |
110 |
4-F18 |
|
SY65×50-20 |
370 |
205 |
220 |
450 |
400 |
8-F16 |
50 |
160 |
125 |
4-F18 |
|
25WSY-22 |
330 |
205 |
200 |
450 |
400 |
8-F16 |
25 |
110 |
85 |
4-F14 |
|
25WSY-30 |
330 |
205 |
200 |
450 |
400 |
8-F16 |
25 |
110 |
85 |
4-F14 |
|
40WSY-25 |
340 |
205 |
200 |
450 |
400 |
8-F16 |
40 |
145 |
110 |
4-F18 |
|
40FSY-22 |
340 |
205 |
200 |
450 |
400 |
8-F16 |
40 |
145 |
110 |
4-F18 |
|
40FSY-18 |
340 |
205 |
200 |
450 |
400 |
8-F16 |
40 |
145 |
110 |
4-F18 |
|
40WSY-50 |
410 |
330 |
230 |
600 |
550 |
8-F18 |
32 |
140 |
100 |
4-F18 |
|
50FSY-35 |
370 |
205 |
220 |
450 |
400 |
8-F16 |
50 |
160 |
125 |
4-F18 |
|
40FSY-35 |
340 |
205 |
220 |
450 |
400 |
8-F16 |
50 |
160 |
125 |
4-F18 |
|
50FSY-20 |
340 |
205 |
210 |
450 |
400 |
8-F16 |
40 |
145 |
110 |
4-F18 |
|
80FSY-35 |
500 |
330 |
250 |
600 |
550 |
8-F18 |
65 |
180 |
145 |
4-F18 |
|
80FSY-35 |
500 |
330 |
250 |
600 |
550 |
8-F18 |
80 |
190 |
160 |
4-F18 |

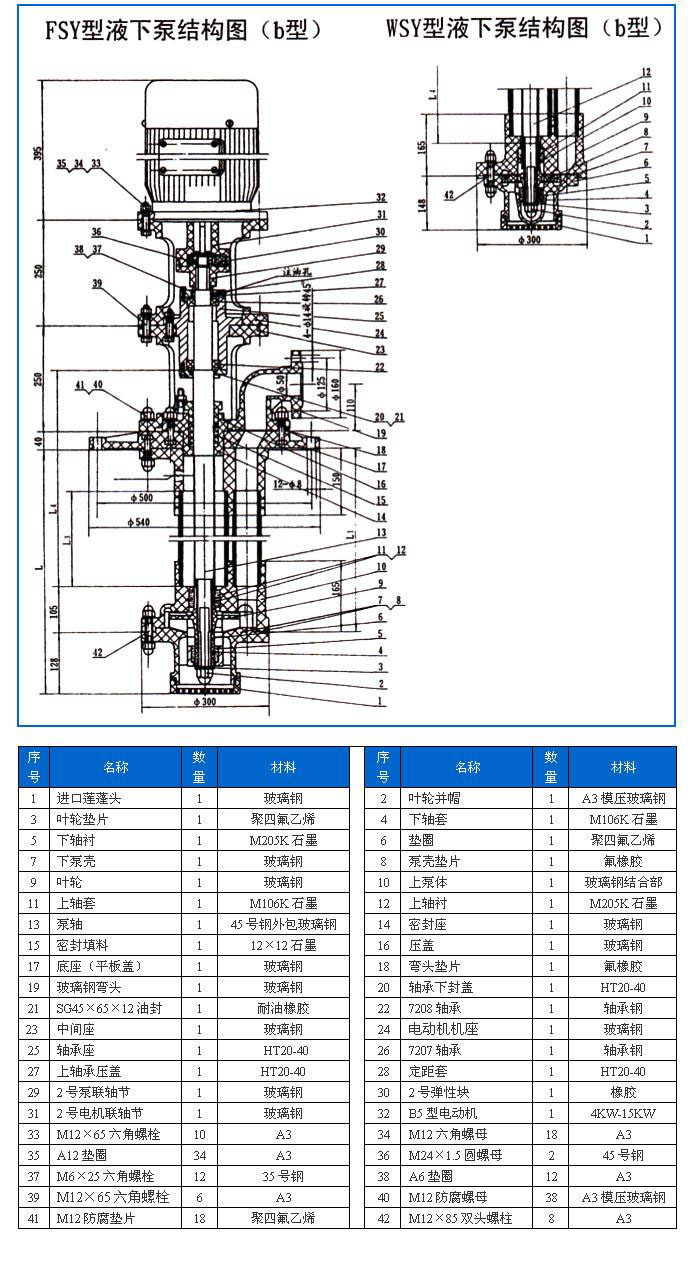

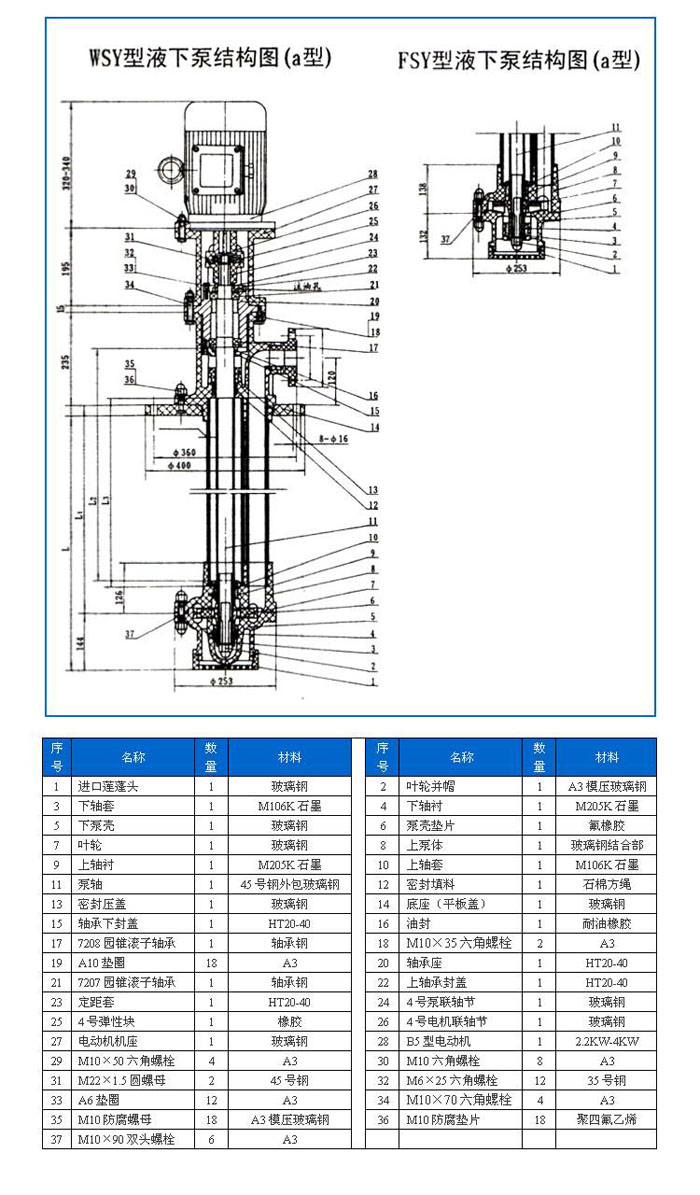

FSY型、WSY型立式玻璃鋼液下泵（結構圖）
