名稱： 帶通濾光片500-599納米Alluxa
型號： 500-25 OD4 Bandpass Filter
品牌： Alluxa
Alluxa高性能濾光片以**的設計工藝和鍍膜過程控制,使Alluxa濾光片具有行業內**的透過率,**的截至深度和波長**性,其中通過SIRRUS™離子束沉積硬鍍膜技術,也使得Alluxa濾光片具有使用壽命長,高損傷閾值,以及**的批次穩定性等特點,并已經廣泛應用于生物熒光系統、拉曼系統、量子、雷達通訊等精密光學系統中。
Alluxa除了豐富的標準品,同時提供定制服務,并且定制成本在行業內有相當大的競爭力。
ULTRA系列帶通濾光片

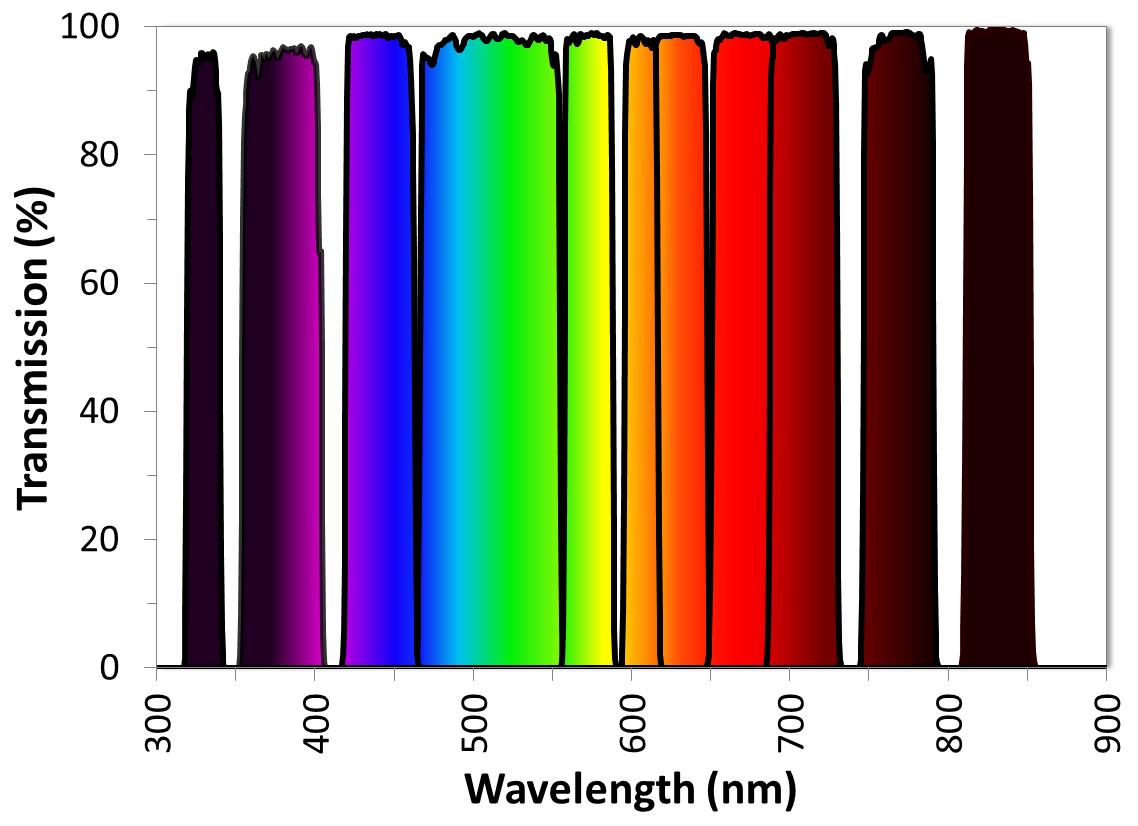

圖1.各種ULTRA系列帶通濾波器，顯示從紫外到紅外的高透射率。
通過精密波長控制，超陡邊緣，深度阻擋和業界**傳輸水平的組合，Alluxa的ULTRA系列硬涂層薄膜光學帶通濾波器將優化各種儀器的性能。
每個ULTRA系列帶通濾波器都旨在超越**儀器的要求。所有產品都經過嚴格測試，以確保過濾器性能達到或超過挑戰性的規格。
ULTRA系列帶通濾光片非常適用于熒光顯微鏡，流式細胞儀，拉曼光譜，激光雷達和光譜成像等應用。提供單頻帶，多頻帶，寬帶，超窄帶和窄帶濾波器。
根據系統的波長范圍和要求，ULTRA系列帶通濾波器可以定制設計，以滿足以下一個或多個具有挑戰性的規范：
? 透過率可達99%
? Up to 99% transmission for passbands in the visible range
? 通過設計達截至深度高達OD10
? Up to OD10 wide range out of band blocking by design
? 陡度：0.5% CWL @ 50%T～OD6
? Edge transitions as steep as 0.5% of CWL from 50% T to OD6
? 波長范圍250nm～13µm可選
? CWL at any wavelength from the UV to the mid IR (～250 nm to 13 µm)
? 波長精度誤差±0.25%CWL
? Tolerances as tight as ± 0.25% of CWL
? 透過波前差(RMS)： 極優0.01λper inch @ 632.8 nm
? TWE as low as 0.01 wave RMS/inch measured at 632.8 nm
用于熒光應用的多頻帶濾光片

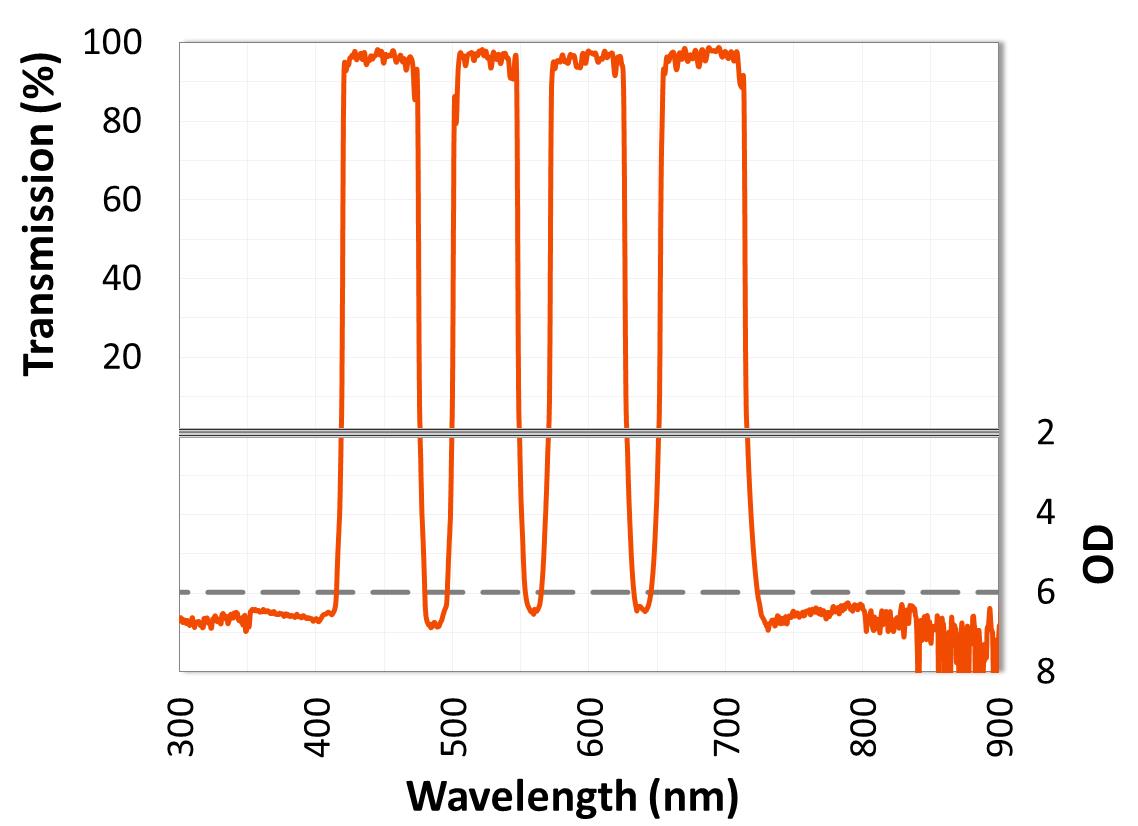

圖2. ULTRA系列多頻帶濾波器，具有陡峭邊緣，高傳輸和OD6帶外截至。
ULTRA系列多頻帶通濾光片可以設計為10個以上的透過波段，波段之間的OD值大于8，超高的截至陡度，高達98％的透過率。 它們非常適合用作熒光技術中的激發或發射濾光片，要求在單個樣本中同時檢測多個熒光團。
創新薄膜涂層工藝帶來的質量和一致性

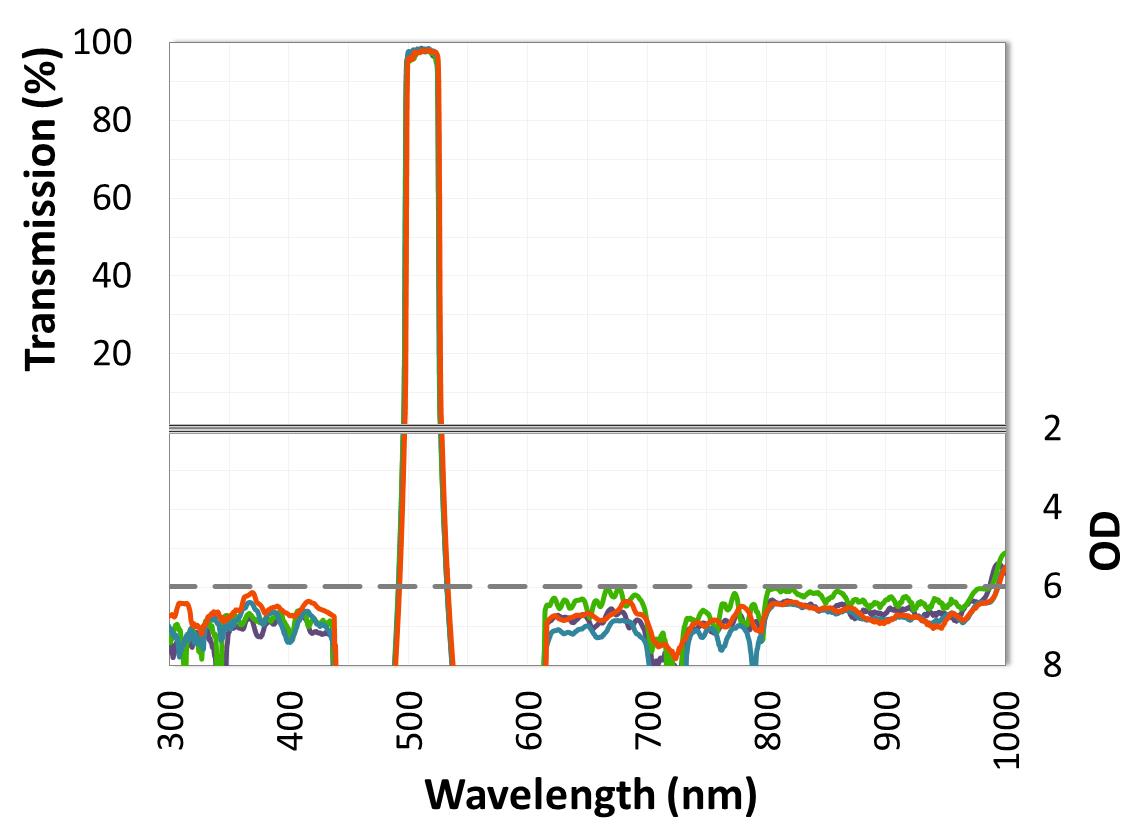

圖3. ULTRA系列濾光片的波長控制，傳輸和截至在幾種不同的涂層運行中具有高度可重復性。Alluxa薄膜濾光片和介質反射鏡均采用我們的SIRRUS™離子束沉積硬鍍膜技術，這使我們能夠在多個不同的涂層運行中可靠地重復生產相同的高性能薄膜帶通濾波器，這意味著您的所有系統性能始終如一。
Alluxa帶通濾光片500-599nm
| 500-25 OD4 Bandpass Filter | |
| Item Number | 7403 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 500 nm ± 3.0 nm |
| FWHM | 25 nm ± 3.0 nm |
| Transmission Band(s) | 20 nm > 90% T Average |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 447 nm, 523 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 500-20 OD6 ULTRA Bandpass Filter | |
| Item Number | 7625 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 500 nm ± 1.5 nm |
| FWHM | 20 nm Nominal |
| Transmission Band(s) | 492 to 508 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 479 nm, 522 to 850 nm; OD5: 850 to 1050 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | EYFP |
| 500-30 OD6 Bandpass Filter | |
| Item Number | 7164 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 500 nm ± 3.0 nm |
| FWHM | 30 nm Nominal |
| Transmission Band(s) | 488 to 512 nm > 93% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 473 nm, 525 to 670 nm; OD4: 670 to 980 nm; OD2: 980 to 1100 nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | EYFP |
| Alternate Fluorophore(s) | 6-TET, Acridine Orange, Alexa Fluor® 514, Amplex Gold, ATTO 514, BODIPY®-DiMe, BODIPY®-Phenyl, BODIPY®-TMSCC, CF™514, Citrine, DiA, FlAsh, Fluo-3, Fluo-4, LysoTracker® Yellow, Oregon Green® 514, PromoFluor-505, Rhodamine 123, Sodium Green™, SYBR® Gold, TagYFP, TO-PRO®-1, TOTO®-1, TurboYFP, Vybrant® DyeCycle™ Orange |
| 500-10 OD4 Bandpass Filter | |
| Item Number | 7402 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 500 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 485 nm, 515 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 510-10 OD4 Bandpass Filter | |
| Item Number | 7407 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 510 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 495 nm, 525 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 513-22 OD6 ULTRA Bandpass Filter | |
| Item Number | 7231 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 513 nm ± 1.5 nm |
| FWHM | 22 nm Nominal |
| Transmission Band(s) | 504 to 522 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 400 to 492 nm, 534 to 700 nm; OD5: 200 to 400 nm, 700 to 750 nm; OD2: 750 to 900 nm |
| Parallelism | < 5.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | FITC |
| Alternate Fluorophore(s) | 5-FAM, Acridine Yellow, AmCyan1, ATTO 465, Azami Green, Azami Green (monomeric), BCECF@pH5.2, BCECF@pH5.5, C3-Oxacyanine, Calcein, CF™488A, Coumarin 6, Cy®2, DiO, EGFP, Emerald, FlAsh, Fluo-3, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, HCS CellMask™ Green, MitoTracker® Green, MitoTracker® Green FM, mWasabi, NBD, NBD-X, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), PromoFluor-488, PromoFluor-488 Premium, PS-CFP2, sgGFP, SYTO® 13, SYTO® 16, SYTO® 9, TagGFP, TagGFP2, TurboGFP, WEGFP (post-activation), YO-PRO®-1, YOYO®-1 |
| 513-29 OD6 ULTRA Bandpass Filter | |
| Item Number | 7130 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 513 nm ± 1.5 nm |
| FWHM | 29 nm Nominal |
| Transmission Band(s) | 501 to 525 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 495 nm, 531 to 1000 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TagRFP, TurboYFP |
| Alternate Fluorophore(s) | 5-TAMRA (pH7), 6-JOE, 6-TET, Alexa Fluor® 514, Alexa Fluor® 532, Alexa Fluor® 568, Amplex Gold, Amplex UltraRed, ATTO 514, ATTO 520, ATTO 565, ATTO RHO11, ATTO RHO3B, BO-PRO-3, BOBO-3, BODIPY® R6G, BODIPY®-DiMe, CF™514, CF™517ST, CF™568, CF™570, DsRed, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-500, DY-500XL MegaStokes, Eosin, Eosin Y, Erythrosin-5-isothiocyanate, EYFP, FlAsh, FluoSpheres® Red, FusionRed, HCS LipidTOX™ Green Phospholipidosis Detection Reagent, JOJO-1, KFP-Red, Lissamine™ Rhodamine, LOLO-1, Magnesium Orange, mApple, Merocyanine 540, mHoneydew, MitoTracker® Orange, mStrawberry, mTangerine, Oregon Green® 514, PA-TagRFP, pHrodo® succinimidyl ester, Pro-Q® Diamond, PromoFluor-505, Rhod-2, Rhodamine (phalloidin), Rhodamine 6G, Rhodamine Red™-X, Spectrum Orange, TagYFP, tdTomato, TO-PRO®-1, TOTO®-1, TRITC, TurboRFP, Vybrant® DyeCycle™ Green, Alexa Fluor® 610 R-PE |
| 520-40 OD6 ULTRA Bandpass Filter | |
| Item Number | 7115 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 520 nm ± 1.5 nm |
| FWHM | 40 nm Nominal |
| Transmission Band(s) | 502 to 538 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 488 nm, 435 to 488 nm, 560 to 700 nm; OD5: 700 to 925 nm; OD2: 925 to 1025 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | EGFP |
| Alternate Fluorophore(s) | 5-FAM, AmCyan1, Azami Green, Azami Green (monomeric), BCECF@pH5.2, BCECF@pH5.5, C3-Oxacyanine, Calcein, CF™450, CF™488A, Coumarin 153, Coumarin 6, Cy®2, DiO, Emerald, FITC, Fluo-4, Fluorescein (0.1M NaOH), Fluorescein (IgG), HCS CellMask™ Green, LysoSensor™ Green, mHoneydew, MitoTracker® Green FM, mWasabi, NBD, NBD-X, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), PromoFluor-488, PromoFluor-488 Premium, PS-CFP2, sgGFP, SYBR® Green I, SYTO® 13, SYTO® 16, SYTO® 9, TagGFP, TagGFP2, TurboGFP, WEGFP (post-activation), YO-PRO®-1, YOYO®-1 |
| 520-10 OD4 Bandpass Filter | |
| Item Number | 7409 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 520 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 505 nm, 535 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 524-32 OD6 ULTRA Bandpass Filter | |
| Item Number | 7220 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 524 nm ± 1.5 nm |
| FWHM | 32 nm Nominal |
| Transmission Band(s) | 510 to 538 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 498 nm, 550 to 800 nm; OD4: 800 to 1000 nm; OD2: 1000 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | EGFP |
| Alternate Fluorophore(s) | 5-FAM, Alexa Fluor® 488, AmCyan1, ATTO 488, Azami Green, Azami Green (monomeric), BCECF@pH5.2, BCECF@pH5.5, BCECF@pH9, Calcein, Calcium Crimson™, CF™450, CF™488A, CyQUANT®, Emerald, FITC, Fluo-4, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, HCS CellMask™ Green, HCS LipidTOX™ Green Neutral Lipid Stain, HCS LipidTOX™ Green Phospholipidosis Detection Reagent, HiLyte™ Fluor 488, LIVE/DEAD® Fixable Green Dead Cell Stain, mHoneydew, MitoTracker® Green, MitoTracker® Green FM, mWasabi, NBD, NBD-X, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), Oregon Green® 488, PA-GFP (post-activation), PicoGreen® dsDNA Quantitation Reagent, PromoFluor-488, PromoFluor-488 Premium, Rhodamine 110, Rhodamine Green™, Rhodol Green, sgGFP, Spectrum Green, SYBR® Gold, SYBR® Green I, SYTO® 13, SYTO® 16, SYTO® RNASelect, TagGFP, TagGFP2, TurboGFP, YO-PRO®-1, YOYO®-1, ZsGreen1 |
| 525-50 OD6 ULTRA Bandpass Filter | |
| Item Number | 7647 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 525 nm ± 1.5 nm |
| FWHM | 50 nm Nominal |
| Transmission Band(s) | 502.5 to 547.5 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 200 to 490 nm, 561 to 745 nm; OD3: 745 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | EGFP |
| 526-52 OD6 ULTRA Bandpass Filter | |
| Item Number | 7592 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 526 nm ± 1.5 nm |
| FWHM | 52 nm Nominal |
| Transmission Band(s) | 503 to 549 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 498 nm, 554 to 1000 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | EGFP |
| 527-22 OD6 ULTRA Bandpass Filter | |
| Item Number | 7674 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 527 nm ± 1.5 nm |
| FWHM | 22 mm Nominal |
| Transmission Band(s) | 518 to 536 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 511 nm, 544 to 750 nm; OD5: 750 to 925 nm; OD3: 925 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Oregon Green® 488 |
| 528-47 OD6 ULTRA Bandpass Filter | |
| Item Number | 7219 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 528 nm ± 1.5 nm |
| FWHM | 47 nm Nominal |
| Transmission Band(s) | 507 to 549 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 494 nm, 562 to 710 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | FITC |
| Alternate Fluorophore(s) | 5-FAM, Alexa Fluor® 488, ATTO 488, ATTO 495, Azami Green, Azami Green (monomeric), BCECF@pH5.2, BCECF@pH5.5, BCECF@pH9, BODIPY® FL, BODIPY® FL (IgG), Calcein, CF™488A, CyQUANT®, EGFP, Emerald, Fluo-4, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, FluoSpheres® Yellow-Green, HCS CellMask™ Green, HiLyte™ Fluor 488, LIVE/DEAD® Fixable Green Dead Cell Stain, LysoSensor™ Green, mHoneydew, MitoTracker® Green, MitoTracker® Green FM, mWasabi, NBD, NBD-X, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), Oregon Green® 488, PA-GFP (post-activation), PromoFluor-488, PromoFluor-488 Premium, PS-CFP2, Rhodamine 110, Rhodamine Green™, Rhodol Green, sgGFP, Spectrum Green, SYBR® Green I, SYTOX® Green, SYTO® 16, SYTO® RNASelect, TagGFP, TagGFP2, TurboGFP, Vybrant® DyeCycle™ Green, YO-PRO®-1, YOYO®-1 |
| 531.5-39 OD6 Bandpass Filter | |
| Item Number | 7141 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 531.5 nm ± 3.0 nm |
| FWHM | 39 nm Nominal |
| Transmission Band(s) | 515 to 548 nm > 93% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 360 to 400 nm, 400 to 496 nm, 564 to 850 nm; OD3: 300 to 360 nm, 850 to 1000 nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TRITC |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), Alexa Fluor® 546, Alexa Fluor® 555, ATTO 550, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Thiacyanine (PrOH), Calcium Orange™, CellMask™ Orange, CF™543, CF™555, CF™568, Cy®3, DiI, DiIC18 (3), DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-547, DY-554, DY-555, E2-Orange, FluoSpheres® Orange, HCS CellMask™ Orange, HiLyte™ Fluor 555, HiLyte™ Plus 555, Magnesium Orange, Merocyanine 540, MitoTracker® Orange, mOrange, mOrange2, OFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, Pro-Q® Diamond, PromoFluor-546, PromoFluor-555, PromoFluor-555P, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Rose Bengal, Spectrum Orange, SYTOX® Orange, TagRFP, tdTomato, TurboRFP |
| 532-10 OD4 Bandpass Filter | |
| Item Number | 7412 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 532 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 517 nm, 547 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 534-23 OD6 ULTRA Bandpass Filter | |
| Item Number | 7182 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 534 nm ± 1.5 nm |
| FWHM | 23 nm Nominal |
| Transmission Band(s) | 525 to 543 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 510 nm, 555 to 725 nm; OD5: 250 to 300 nm, 725 to 930 nm; OD2: 930 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®3 |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), 6-HEX, Alexa Fluor® 555, ATTO 550, ATTO RHO6G, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Indocyanine, Calcium Orange™, Carboxy SNARF®-1 (pH 6), CellMask™ Orange, CF™535ST, CF™543, CF™555, DiI, DiIC18 (3), DsRed Dimer2, DsRed Tandem Dimer2, dTomato, DY-554, DY-555, E2-Orange, Erythrosin-5-isothiocyanate, FluoSpheres® Orange, HCS CellMask™ Orange, HiLyte™ Fluor 555, HiLyte™ Plus 555, MitoTracker® Orange, mOrange, mOrange2, OFP, PA-TagRFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, Pro-Q® Diamond, PromoFluor-532, PromoFluor-546, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Spectrum Gold, SYTOX® Orange, SYTO® 82, TurboRFP, Vybrant® DyeCycle™ Orange |
| 538-47 OD6 ULTRA Bandpass Filter | |
| Item Number | 7122 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 538 nm ± 1.5 nm |
| FWHM | 47 nm Nominal |
| Transmission Band(s) | 517 to 559 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 507 nm, 450 to 507 nm, 570 to 850 nm; OD4: 850 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | FITC |
| Alternate Fluorophore(s) | 5-FAM, Alexa Fluor® 488, ATTO 488, ATTO 495, BCECF@pH5.2, BCECF@pH5.5, BCECF@pH9, BODIPY® FL, BODIPY® FL (IgG), BODIPY®-TMSCC, Calcein, Calcium Green™-1, CF™450, CF™488A, CyQUANT®, DCF, DY-490, DY-490XL MegaStokes, EGFP, Fluo-3, Fluo-4, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, FluoSpheres® Yellow-Green, HCS CellMask™ Green, HCS LipidTOX™ Green Phospholipidosis Detection Reagent, HiLyte™ Fluor 488, HmGFP, Kaede Green, LIVE/DEAD® Fixable Green Dead Cell Stain, mHoneydew, MitoTracker® Green FM, NBD, NBD-X, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), Oregon Green® 488, PA-GFP (post-activation), PicoGreen® dsDNA Quantitation Reagent, PromoFluor-488, PromoFluor-488 Premium, PromoFluor-488LSS, PromoFluor-505, Rhodamine Green™, Rhodol Green, Sodium Green™, Spectrum Green, SYBR® Green I, SYTOX® Green, SYTO® 11, SYTO® 16, SYTO® RNASelect, TagGFP, TagGFP2, TurboGFP, Vybrant® DyeCycle™ Green, ZsGreen1 |
| 540-10 OD4 Bandpass Filter | |
| Item Number | 7414 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 540 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 525 nm, 555 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 540-20 OD6 ULTRA Bandpass Filter | |
| Item Number | 7701 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 540 nm ± 1.5 nm |
| FWHM | 20 nm Nominal |
| Transmission Band(s) | 532 to 548 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 524 nm, 557 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®3 |
| 544-33 OD6 Bandpass Filter | |
| Item Number | 7165 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 544 nm ± 3.0 nm |
| FWHM | 33 nm Nominal |
| Transmission Band(s) | 530 to 558 nm > 93% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 380 to 519 nm, 567 to 770 nm; OD5: 380 to 519 nm, 567 to 770 nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | EYFP |
| Alternate Fluorophore(s) | 6-TET, Acridine Orange, Alexa Fluor® 514, Amplex Gold, ATTO 514, BODIPY®-DiMe, BODIPY®-Phenyl, BODIPY®-TMSCC, CF™514, Citrine, DiA, FlAsh, Fluo-3, Fluo-4, LysoTracker® Yellow, Oregon Green® 514, PromoFluor-505, Rhodamine 123, Sodium Green™, SYBR® Gold, TagYFP, TO-PRO®-1, TOTO®-1, TurboYFP, Vybrant® DyeCycle™ Orange |
| 544.5-23 OD6 ULTRA Bandpass Filter | |
| Item Number | 7114 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 544.5 nm ± 1.5 nm |
| FWHM | 23 nm Nominal |
| Transmission Band(s) | 535 to 554 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 520 nm, 563 to 1100 nm, 563 to 800 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TagRFP |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), Alexa Fluor® 546, Alexa Fluor® 555, Amplex UltraRed, ATTO 550, ATTO 565, ATTO RHO3B, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Thiacyanine (EtOH), C3-Thiacyanine (PrOH), Calcium Orange™, Carboxy SNARF®-1 (pH 6), CellMask™ Orange, CF™555, CF™568, Cy®3, DiI, DiIC18 (3), DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-555, HCS CellMask™ Orange, HiLyte™ Fluor 555, HiLyte™ Plus 555, Magnesium Orange, Merocyanine 540, MitoTracker® Orange, mOrange2, mTangerine, OFP, PA-TagRFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, Pro-Q® Diamond, PromoFluor-555, PromoFluor-555P, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rose Bengal, Spectrum Orange, SYTOX® Orange, tdTomato, TRITC, TurboRFP |
| 546-22 OD6 ULTRA Bandpass Filter | |
| Item Number | 7128 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 546 nm ± 1.5 nm |
| FWHM | 22 nm Nominal |
| Transmission Band(s) | 537 to 555 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 533 nm, 559 to 1000 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TRITC |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), Alexa Fluor® 546, Alexa Fluor® 555, ATTO 550, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Thiacyanine (PrOH), Calcium Orange™, CellMask™ Orange, CF™543, CF™555, CF™568, Cy®3, DiI, DiIC18 (3), DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-547, DY-554, DY-555, E2-Orange, FluoSpheres® Orange, HCS CellMask™ Orange, HiLyte™ Fluor 555, HiLyte™ Plus 555, Magnesium Orange, Merocyanine 540, MitoTracker® Orange, mOrange, mOrange2, OFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, Pro-Q® Diamond, PromoFluor-546, PromoFluor-555, PromoFluor-555P, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Rose Bengal, Spectrum Orange, SYTOX® Orange, TagRFP, tdTomato, TurboRFP |
| 549-21 OD6 ULTRA Bandpass Filter | |
| Item Number | 7175 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 549 nm ± 1.5 nm |
| FWHM | 21 nm Nominal |
| Transmission Band(s) | 541 to 557 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 526 nm, 571 to 800 nm; OD3: 800 to 1200 nm |
| Parallelism | < 5.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TagRFP |
| Alternate Fluorophore(s) | 5-TAMRA (pH7), Alexa Fluor® 568, Amplex UltraRed, ATTO 565, ATTO RHO11, ATTO RHO3B, BO-PRO-3, BOBO-3, CF™568, CF™570, DsRed, DsRed Express T1, DsRed Tandem Dimer2, dTomato, FluoSpheres® Red, FusionRed, KFP-Red, Lissamine™ Rhodamine, LOLO-1, Magnesium Orange, mApple, Merocyanine 540, MitoTracker® Orange, mStrawberry, mTangerine, PA-TagRFP, pHrodo® succinimidyl ester, Pro-Q® Diamond, Rhod-2, Rhodamine (phalloidin), Rhodamine Red™-X, Spectrum Orange, tdTomato, TRITC, TurboRFP, Alexa Fluor® 610 R-PE |
| 550-10 OD4 Bandpass Filter | |
| Item Number | 7416 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 550 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 535 nm, 565 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 560-32 OD6 ULTRA Bandpass Filter | |
| Item Number | 7096 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 560 nm ± 1.5 nm |
| FWHM | 32 nm Nominal |
| Transmission Band(s) | 546 to 574 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 500 to 531 nm, 589 to 670 nm; OD5: 250 to 500 nm, 670 to 925 nm; OD2: 925 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TRITC |
| Alternate Fluorophore(s) | Alexa Fluor® 568, AsRed2, ATTO 565, ATTO RHO101, ATTO RHO11, ATTO RHO12, ATTO RHO3B, ATTO Thio12, BO-PRO-3, BOBO-3, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), C5-Oxacyanine, Calcein Red-Orange, Calcium Crimson™, Carboxy SNARF®-1 (pH 6), CellTrace™ Calcein Red-Orange, CF™568, CF™570, CF™583, Cy®3.5, DHPE Texas Red®, DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-590, FluoSpheres® Red, FusionRed, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, Katushka2S, KFP-Red, Lissamine™ Rhodamine, LysoTracker® Red, mApple, mCherry, MitoTracker® Red, mPlum, mRFP1, mStrawberry, mTangerine, PA-TagRFP, pHrodo® succinimidyl ester, Pro-Q® Diamond, PromoFluor-568, PromoFluor-590, PromoFluor-594, Propidium iodide, ReAsH, Rhodamine Red™-X, TagRFP, tdTomato, Texas Red® R-PE, TurboFP602, X-rhod-1 |
| 560-10 OD4 Bandpass Filter | |
| Item Number | 7419 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 560 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 545 nm, 575 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 560-32 OD6 Bandpass Filter | |
| Item Number | 7163 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 560 nm ± 3.0 nm |
| FWHM | 32 nm Nominal |
| Transmission Band(s) | 546 to 574 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 589.5 to 623.5 nm; OD5: 250 to 531 nm, 623.5 to 925 nm; OD2: 925 to 1100 nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®3.5, Texas Red® R-PE |
| Alternate Fluorophore(s) | 5-ROX, Alexa Fluor® 568, Amplex UltraRed, AsRed2, ATTO 565, ATTO RHO11, ATTO RHO12, ATTO RHO3B, ATTO Thio12, BO-PRO-3, BOBO-3, Calcein Red-Orange, Carboxy SNARF®-1 (pH 6), Carboxy SNARF®-1 (pH 9), CellTrace™ Calcein Red-Orange, CellTracker™ Red CMTPX, CF™568, CF™570, CF™583, DHPE Texas Red®, DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-590, FluoSpheres® Red, FusionRed, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, KFP-Red, Lissamine™ Rhodamine, LysoTracker® Red, mApple, MitoTracker® Red, mRFP1, mStrawberry, mTangerine, PA-TagRFP, pHrodo® succinimidyl ester, Pro-Q® Diamond, PromoFluor-568, Propidium iodide, ReAsH, Resorufin, Rhodamine Red™-X, Spectrum Orange, Sulforhodamine 101, TagRFP, tdTomato, Texas Red® R-PE, TurboFP602, X-rhod-1 |
| 568-10 OD4 Bandpass Filter | |
| Item Number | 7420 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 568 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 553 nm, 583 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 572-30 OD6 ULTRA Bandpass Filter | |
| Item Number | 7210 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 572 nm ± 2.0 nm |
| FWHM | 30 nm Nominal |
| Transmission Band(s) | 559 to 585 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 250 to 547 nm, 597 to 925 nm; OD2: 925 to 1120 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®3 |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), 6-HEX, Alexa Fluor® 532, ATTO 532, ATTO 550, ATTO RHO6G, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Indocyanine, Calcium Orange™, Carboxy SNARF®-1 (pH 6), CF™535ST, CF™543, DiI, DiIC18 (3), dTomato, DY-554, DY-555, E2-Orange, FluoSpheres® Orange, HCS CellMask™ Orange, HiLyte™ Fluor 555, HiLyte™ Plus 555, Magnesium Orange, mBanana, MitoTracker® Orange, mOrange, mOrange2, OFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, PromoFluor-532, PromoFluor-546, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine 6G, Rhodamine B, SYTOX® Orange, SYTO® 82, TagRFP, tdTomato, TurboRFP, Vybrant® DyeCycle™ Orange |
| 575-32 OD6 ULTRA Bandpass Filter | |
| Item Number | 7322 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 575 nm ± 1.5 nm |
| FWHM | 32 nm Nominal |
| Transmission Band(s) | 562 to 588 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 546 nm, 604 to 800 nm; OD5: 800 to 925 nm; OD4: 925 to 1200 nm |
| Parallelism | < 5.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Polished Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Texas Red® (Dextran) |
| Alternate Fluorophore(s) | Alexa Fluor® 594, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO RHO13, ATTO Thio12, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), Calcium Crimson™, CellTrace™ BODIPY® TR, CellTracker™ Red CMTPX, CF™583, CF™594, CF™594ST, Cresyl Violet perchlorate, Crystal Violet (glycerol), DHPE Texas Red®, FluoSpheres® Red, FusionRed, HcRed1, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, Katushka2S, LIVE/DEAD® Fixable Red Dead Cell Stain, mCherry, mKate2, mRFP1, PromoFluor-594, ReAsH, Spectrum Red, TagFP635, Texas Red® R-PE, Texas Red®-X, TurboFP650, Alexa Fluor® 610 R-PE, SYTOX® Advanced Dead Cell Stain |
| 575-29 OD6 ULTRA Bandpass Filter | |
| Item Number | 7222 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 575 nm ± 1.5 nm |
| FWHM | 29 nm Nominal |
| Transmission Band(s) | 564 to 586 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 551 nm, 599 to 925 nm; OD4: 925 to 1200 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Cy®3 |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), 6-HEX, Alexa Fluor® 555, ATTO 550, ATTO RHO6G, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Indocyanine, Calcium Orange™, Carboxy SNARF®-1 (pH 6), CellMask™ Orange, CF™535ST, CF™543, CF™555, DiI, DiIC18 (3), DsRed Dimer2, DsRed Tandem Dimer2, dTomato, DY-554, DY-555, E2-Orange, Erythrosin-5-isothiocyanate, FluoSpheres® Orange, HCS CellMask™ Orange, HiLyte™ Fluor 555, HiLyte™ Plus 555, MitoTracker® Orange, mOrange, mOrange2, OFP, PA-TagRFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, Pro-Q® Diamond, PromoFluor-532, PromoFluor-546, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Spectrum Gold, SYTOX® Orange, SYTO® 82, TurboRFP, Vybrant® DyeCycle™ Orange |
| 576-23 OD6 ULTRA Bandpass Filter | |
| Item Number | 7127 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 576 nm ± 1.5 nm |
| FWHM | 23 nm Nominal |
| Transmission Band(s) | 567 to 585 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 350 to 562 nm, 591 to 1000 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | mCherry, TRITC |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), Alexa Fluor® 546, Alexa Fluor® 555, Alexa Fluor® 594, AsRed2, ATTO 550, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO Thio12, BO-PRO-3, BOBO-3, BODIPY® TMR-X, BODIPY® TMR-X (IgG), BODIPY® TR-X, BODIPY® TR-X (Phallacidin), C3-Thiacyanine (PrOH), Calcium Crimson™, Calcium Orange™, CellMask™ Orange, CellTrace™ BODIPY® TR, CellTracker™ Red CMTPX, CF™543, CF™555, CF™568, CF™583, CF™594, CF™594ST, Cresyl Violet perchlorate, Crystal Violet (glycerol), Cy®3, DHPE Texas Red®, DiI, DiIC18 (3), DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-547, DY-554, DY-555, E2-Orange, FluoSpheres® Orange, FluoSpheres® Red, FusionRed, HCS CellMask™ Orange, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, HiLyte™ Fluor 555, HiLyte™ Plus 555, Katushka2S, LIVE/DEAD® Fixable Red Dead Cell Stain, Magnesium Orange, Merocyanine 540, MitoTracker® Orange, MitoTracker® Red, mKate2, mOrange, mOrange2, mPlum, mRFP1, Nile Red, OFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, Pro-Q® Diamond, PromoFluor-546, PromoFluor-555, PromoFluor-555P, PromoFluor-594, Quasar® 570, R-phycoerythrin, ReAsH, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Rose Bengal, Spectrum Orange, Spectrum Red, SYTOX® Orange, TagRFP, tdTomato, Texas Red® (Dextran), Texas Red® R-PE, Texas Red®-X, TurboRFP, X-rhod-1 |
| 580-10 OD4 Bandpass Filter | |
| Item Number | 7423 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 580 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 565 nm, 595 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 583-28 OD6 ULTRA Bandpass Filter | |
| Item Number | 7139 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 583 nm ± 1.5 nm |
| FWHM | 28 nm Nominal |
| Transmission Band(s) | 571 to 594 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 480 to 564 nm, 604 to 680 nm; OD4: 350 to 480 nm; OD3: 680 to 950 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Texas Red® (Dextran) |
| Alternate Fluorophore(s) | 5-ROX, Alexa Fluor® 594, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO RHO13, ATTO Thio12, BO-PRO-3, BOBO-3, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), CellTrace™ BODIPY® TR, CellTracker™ Red CMTPX, CF™583, CF™594, CF™594ST, DHPE Texas Red®, FluoSpheres® Red, HcRed1, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, Katushka2S, LIVE/DEAD® Fixable Red Dead Cell Stain, mKate2, mPlum, PromoFluor-594, ReAsH, Spectrum Red, TagFP635, Texas Red®-X, TurboFP650, E2-Crimson |
| 586-25 OD6 ULTRA Bandpass Filter | |
| Item Number | 7189 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 586 nm ± 1.5 nm |
| FWHM | 25 nm Nominal |
| Transmission Band(s) | 576 to 596 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 561 nm, 610 to 780 nm; OD4: 250 to 300 nm, 780 to 930 nm; OD2: 930 to 1120 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | Texas Red® (Dextran) |
| Alternate Fluorophore(s) | 5-ROX, Alexa Fluor® 594, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO RHO13, ATTO Thio12, BO-PRO-3, BOBO-3, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), C-PC, Calcium Crimson™, Carboxy SNARF®-1 (pH 9), CellTrace™ BODIPY® TR, CellTracker™ Red CMTPX, CF™583, CF™594, CF™594ST, Cresyl Violet perchlorate, Crystal Violet (glycerol), DHPE Texas Red®, FluoSpheres® Red, FusionRed, HcRed1, HCS LipidTOX™ Red Neutral Lipid Stain, HCS LipidTOX™ Red Phospholipidosis Detection Reagent, Katushka2S, LIVE/DEAD® Fixable Red Dead Cell Stain, mCherry, mKate2, mPlum, mRFP1, PromoFluor-594, ReAsH, Spectrum Red, TagFP635, Texas Red® R-PE, Texas Red®-X, TurboFP602, TurboFP650 |
| 588-45 OD6 Bandpass Filter | |
| Item Number | 7142 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 588 nm ± 3.0 nm |
| FWHM | 45 nm Nominal |
| Transmission Band(s) | 568 to 608 nm > 93% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 555 nm, 621 to 900 nm; OD5: 300 to 555 nm, 621 to 900 nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TRITC |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), Alexa Fluor® 546, Alexa Fluor® 555, ATTO 550, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Thiacyanine (PrOH), Calcium Orange™, CellMask™ Orange, CF™543, CF™555, CF™568, Cy®3, DiI, DiIC18 (3), DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-547, DY-554, DY-555, E2-Orange, FluoSpheres® Orange, HCS CellMask™ Orange, HiLyte™ Fluor 555, HiLyte™ Plus 555, Magnesium Orange, Merocyanine 540, MitoTracker® Orange, mOrange, mOrange2, OFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, Pro-Q® Diamond, PromoFluor-546, PromoFluor-555, PromoFluor-555P, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Rose Bengal, Spectrum Orange, SYTOX® Orange, TagRFP, tdTomato, TurboRFP |
| 589-10 OD4 Bandpass Filter | |
| Item Number | 7424 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 589 nm ± 2.0 nm |
| FWHM | 10 nm ± 2.0 nm |
| Transmission Band(s) | Peak> 90% T Absolute |
| Blocking Level | OD4 |
| Blocking Range(s)* | OD4: 200 to 574 nm, 604 to 1200 nm |
| Substrate Type | Borofloat® |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 3.3 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 5.0 mm |
| 595-50 OD6 ULTRA Bandpass Filter | |
| Item Number | 7113 |
| Angle of Incidence | 0 Degrees |
| Center Wavelength | 595 nm ± 1.5 nm |
| FWHM | 50 nm Nominal |
| Transmission Band(s) | 572 to 618 nm > 95% T Average |
| Blocking Level | OD6 |
| Blocking Range(s)* | OD6: 300 to 563 nm, 635 to 800 nm; OD4: 800 to 1000 nm; OD2: 1000 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Substrate Type | Fused Silica |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Main Fluorophore(s) | TagRFP |
| Alternate Fluorophore(s) | 5-TAMRA (MeOH), 5-TAMRA (pH7), Alexa Fluor® 546, Alexa Fluor® 555, Amplex UltraRed, ATTO 550, ATTO 565, ATTO RHO3B, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Thiacyanine (EtOH), C3-Thiacyanine (PrOH), Calcium Orange™, Carboxy SNARF®-1 (pH 6), CellMask™ Orange, CF™555, CF™568, Cy®3, DiI, DiIC18 (3), DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-555, HCS CellMask™ Orange, HiLyte™ Fluor 555, HiLyte™ Plus 555, Magnesium Orange, Merocyanine 540, MitoTracker® Orange, mOrange2, mTangerine, OFP, PA-TagRFP, PO-PRO™-3, Pontamine Fast Scarlet 4B, POPO™-3, Pro-Q® Diamond, PromoFluor-555, PromoFluor-555P, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rose Bengal, Spectrum Orange, SYTOX® Orange, tdTomato, TRITC, TurboRFP |
北京市石景山區魯谷路51號院泰禾長安中心3號樓A塔12層1208
010-62029100
010-6202 6808
010-8011 5555-522977
100040
